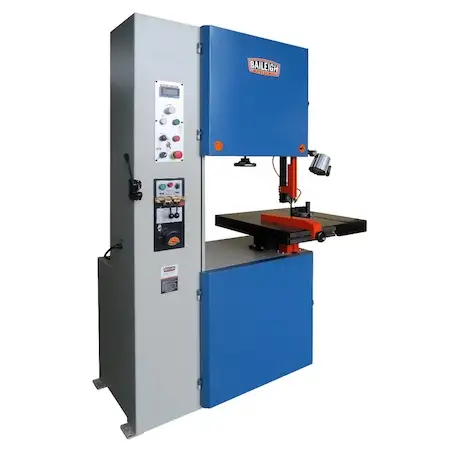

Model No. |
BSV-24VS-V2 |
|
Electrical |
|
|
Power Supply |
230V, 3ph, 60Hz |
|
Main Drive Motor |
3HP (2.2kw), 230V, 9.8A, 6P, 3Ph, 60Hz |
|
Grinder Motor |
1/8HP/ 230V, 1ph |
|
Welding Type / Transformer |
Butt Welder / 4.2KVA |
|
Weld Capacity (Width) |
.118” – .625” (3 – 16mm) |
|
Speed Meter |
DM94C |
|
Work Lamp |
LED Lamp 220V 9W |
|
Inverter |
3HP/ 230V /3ph RM6 RHYMEBUS |
|
Power Cord |
14WAG X4C 2.08MM X4C 105℃/ 300VAC UL |
|
Capacity |
|
|
Blade Speed |
Variable Speed |
|
Cutting Capacity (Height) |
12.2” (310mm) |
|
Throat Depth |
23.62" (600mm) |
|
Blade Width (Min-Max.) |
0.12" – 0.63" (3 – 16mm) |
|
Blade Thickness |
.025” (0.64mm) |
|
Blade Length (Min-Max.) |
|
|
Standard Machine Blade (included) |
0.511” (13mm) 14T |
|
Blade Speed |
85 – 2200 FPM |
|
Table Tilt |
15° L & 45° R |
|
Table Height |
36.22" (920mm) |
|
Table Area |
24.4" x 24.4" (620 x 620mm) |
|
Blade Wheel Dimension |
24.4” (620mm) |
|
Packing |
|
|
Net Weight |
935lbs (425kgs) |
|
Gross Weight |
1031lbs (469kgs) |
|
Machine Overall Dimension (LxHxW) |
451.18” x 77.95” x 33.07” (1300 x 1980 x 840mm) |
|
Packaging Overall Dimension (LxHxW) |
53.54” x 85.43” x 33.46” (1360 x 2170 x 850mm) |
