Model No. |

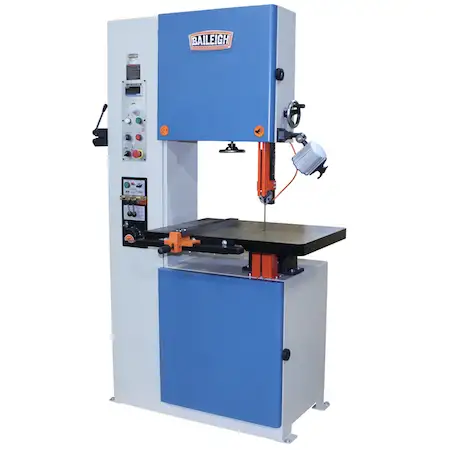

BSV-20VS-V2 |
Electrical |
|
|
Power Supply |
220V, 1ph |
|
Main Drive Motor |
2HP (1.5kw) /230V / 6.5A/ 6P 3Ph 60Hz |
|
Grinder Motor |
1/8HP/ 220V, 1ph |
|
Emergency Stop Switch |
Twcht ZB2-BE-102 |
|
Main Motor On/ Off Switch |
KJD18 |
|
Welding Type / Transformer |
Butt Welder / 4.2KVA |
|
Weld Capacity (Width) |
.118” – .625” (3 – 16mm) |
|
Welder Switch |
KBS-BE101 |
|
Speed Meter |
DM94C |
|
Work Lamp |
LED Lamp 220V 9W |
|
Grinding Motor Switch |
UL/ HY29H |
|
Inverter |
2HP/ 230V /1ph RM6 RHYMEBUS |
|
VR Switch (Speed Control) |
RV24YN20S, B102 |
|
Power Cord |
14WAG X3C 2.08MM X3C 105℃/ 300VAC UL |
Capacity |
|
|
Blade Speed |
Variable Speed |
|
Cutting Capacity (Height) |
12.59” (319mm) |
|
Throat Depth |
19.625" (500mm) |
|
Blade Width (Min-Max.) |
0.11" – 0.63" (2.8 – 16mm) |
|
Blade Thickness |
.025” (0.64mm) |
|
Blade Length (Min-Max.) |
157.67”-159.44”(4005-4050mm ) |
|
Standard Machine Blade (included) |
0.5” (13mm) 14T |
|
Blade Speed |
70 – 1700 FPM |
|
Table Tilt |
15° L & 45° R |
|
Table Height |
38.58" (980mm) |
|
Table Area |
21.65" x 23.62" (550 x 600mm) |
|
Blade Wheel Dimension |
20” (500mm) |
Packing |
|
|
Net Weight |
772lbs (350kgs) |
|
Gross Weight |
851lbs (386kgs) |
|
Machine Overall Dimension |
47.24” x 29.13” x 77.16” (1199 x 739 x 1959mm) |
|
Packaging Overall Dimension |
47.6” x 31.88” x 83.85” (1210 x 810 x 2130mm) |
