Model No. |
BSV-18VS-V2 |

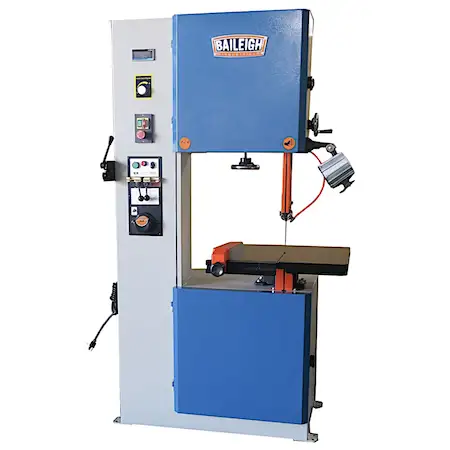

BSV-18VS-220-V2 |
Electrical |
||
|
Power Supply |
110V, 1ph |
220V, 1ph |
|
Main Drive Motor |
1HP /230V / 3.3A/ 6P 3Ph 60Hz |
|
|
Grinder Motor |
1/8HP/ 110V, 1ph |
1/8HP/ 220V, 1ph |
|
Emergency Stop Switch |
Twcht ZB2-BE102 |
|
|
Main Motor On/ Off Switch |
KJD18 |
|
|
Welding Type / Transformer |
Butt Welder / 2.4KVA |
|
|
Weld Capacity (Width) |
.118” – .625” (3 – 16mm) |
|
|
Welder Switch |
KBS-BE101 |
|
|
Speed Meter |
DM94C |
|
|
Work Lamp |
LED Lamp/110-220V 9W |
|
|
Grinding Motor Switch |
UL/ HY29H |
|
|
Inverter |
1HP/ 110V /1ph RM6 RHYMEBUS |
1HP/ 220V /1ph RM6 RHYMEBUS |
|
VR Switch (Speed Control) |
RV24YN20S, B102 |
|
|
Power Cord |
14WAG X3C 2.08MM X3C 105℃/ 300VAC UL |
|
Capacity |
||
|
Blade Speed |
Variable Speed |
|
|
Cutting Capacity (Height) |
12.9” (330mm) |
|
|
Throat Depth |
18" (450mm) |
|
|
Blade Width (Min-Max.) |
0.118" – 0.51" (3 – 13mm) |
|
|
Blade Thickness |
.025” (0.64mm) |
|
|
Blade Length (Min-Max.) |
146.45" – 147.2" (3720 – 3740mm) |
|
|
Standard Machine Blade (included) |
0.39” (10mm) 14T |
|
|
Blade Speed |
90 – 1400 FPM |
|
|
Table Tilt |
15° L & 45° R |
|
|
Table Height |
33.26" (845mm) |
|
|
Table Area |
19.68" x 21.25" (500 x 540mm) |
|
|
Blade Wheel Dimension |
18” (450mm) |
|
Packing |
||
|
Net Weight |
719lbs(327kg) |
|
|
Gross Weight |
807lbs(367kg) |
|
|
Machine Overall Dimension |
43.3” x 32.28” x 71.65” (1100 x 820 x 1820mm) |
|
|
Packaging Overall Dimension |
45.67” x 30.7” x 78.7” (2000 x 1160 x 780mm) |
|
