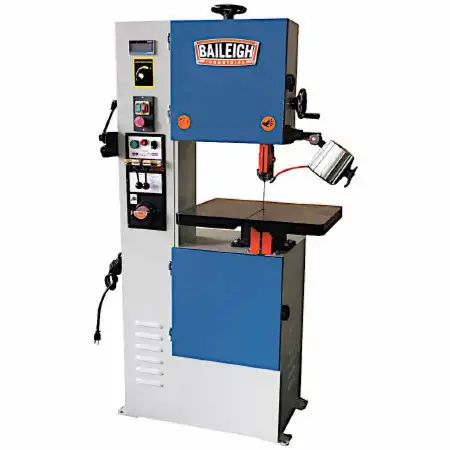

BSV-12VS-V2

Model No.

BSV-12VS-V2

Electrical

Power Supply

110V, 1ph

Main Drive Motor

1HP /230V / 3.3A/ 6P 3Ph 60Hz

Grinder Motor

1/8HP/ 110V, 1ph

Emergency Stop Switch

Twcht ZB2-BE102

Main Motor On/ Off Switch

KJD18

Welding Type / Transformer

Butt Welder / 1.2KVA

Weld Capacity (Width)

.118” – .625” (3 – 16mm)

Welder Switch

KBS-BE101

Speed Meter

DM94C

Work Lamp

LED Lamp/110-220V 9W

Grinding Motor Switch

UL/ HY29H

Inverter

1HP/ 110V /1ph RM6 RHYMEBUS

VR Switch (Speed Control)

RV24YN20S, B102

Power Cord

14WAG X3C 2.08MM X3C 105℃/ 300VAC UL

Drive Belt

A54 (two pieces)

Capacity

Blade Speed

Variable Speed

Cutting Capacity (Height)

6.69” (170mm)

Throat Depth

12.2" (310mm)

Blade Width (Min-Max.)

0.118" – 0.51" (3 – 13mm)

Blade Thickness

.0.25” (0.64mm)

Blade Length (Min-Max.)

98.81" – 102.75" (2510–2610mm)

Standard Machine Blade (included)

0.23” (6mm) 14T

Blade Speed

100 – 1000 FPM

Table Tilt

15° L & 45° R

Table Height

34.84" (885mm)

Table Area

15.94” x 19.68" (405 x 500mm)

Blade Wheel Dimension

12” (310mm)

Packing

Net Weight

720lbs (327kgs)

Gross Weight

807lbs (366kgs)

Machine Overall Dimension

33.07” x 22.83” x 61.42” (840 x 580 x 1560mm)

Packaging Overall Dimension

36.4” x 24.2” x 68.1” (925 x 615 x 1730mm)
